| Model | Capacity(cfm) | Working Pressure |
|---|---|---|
| TSC-30V | 127.15 | 8.00 |
| TSC-40V | 228.17 | 8.00 |
| TSC-50V | 228.17 | 8.00 |
| TSC-60V | 271.96 | 8.00 |
| TSC-75V | 353.26 | 8.00 |
| TSC-100V | 469.75 | 8.00 |
| TSC-120V | 529.80 | 8.00 |
| TSC-150V | 681.67 | 8.00 |
| TSC-175V | 812.36 | 8.00 |
| TSC-200V | 935.98 | 8.00 |
Example
For a demand of 70% of full load, the savings from VFD compared to a fixed speed compressor will be about 28% of full load power
Advantages
Mechanical
Minimum maintenance, Smooth Start, Smooth control
Electrical
Low starting current, High efficiency, Improved power factor, Reduced maximum Demand

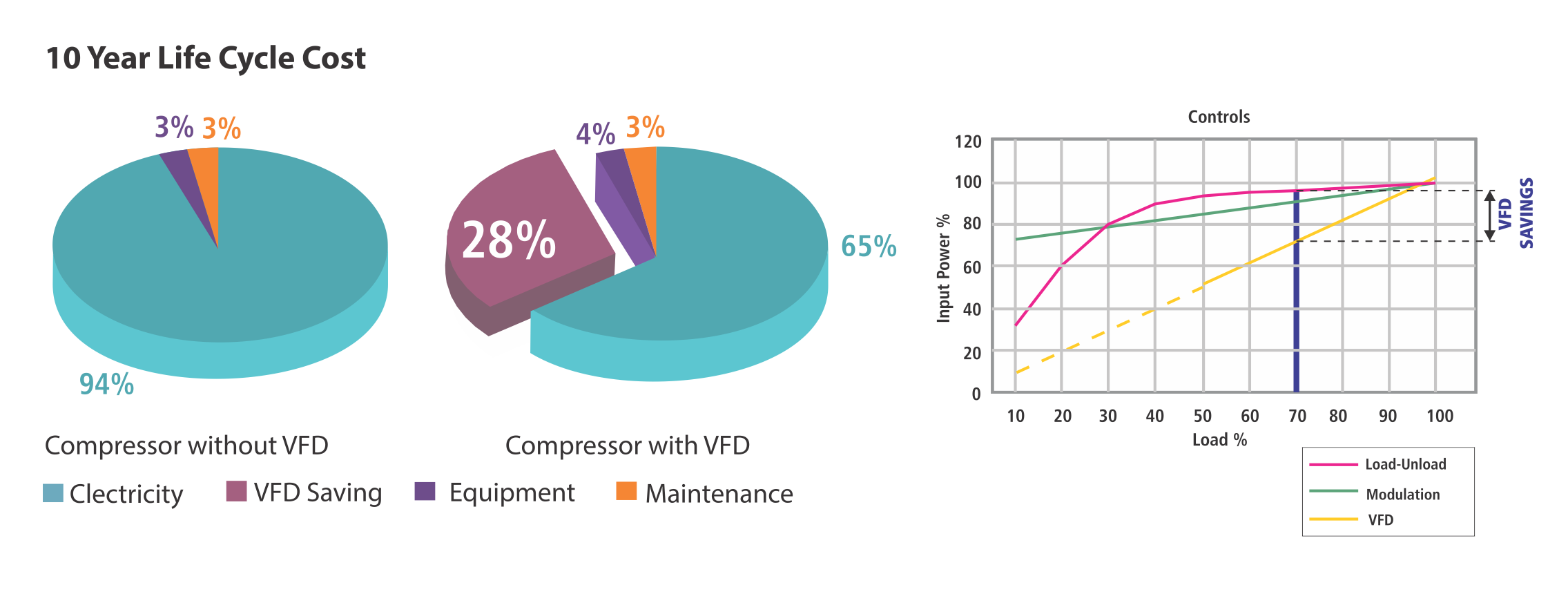

10 Year Life Cycle Cost
Technical Specification
| Model | TSC-10A | TSC-15D | TSC-20D | TSC-25D | TSC-30D | TSC-40D | TSC-50D | TSC-60D | TSC-75D | TSC-100D | TSC-120D | TSC-150D | TSC-175D | TSC-200D | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power | (KW) | 7.50 | 11 | 15 | 18.50 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 |
| RPM | min | 3200 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 |
| Free Air Delivery | CFM |
45.92 38.85 33.55 30.38 |
65.34 57.22 49.44 46.27 |
85.07 79.43 70.64 60.04 |
113.02 109.49 95.36 77.70 |
134.21 127.15 113.02 98.90 |
183.66 178.72 137.75 123.62 |
240.17 228.17 190.73 137.75 |
282.56 271.96 247.24 215.45 |
370.86 353.26 307.28 264.90 |
480.35 469.75 409.71 346.13 |
575.71 540.10 515.67 434.43 |
716.99 681.67 600.44 515.67 |
883.00 812.36 706.40 635.76 |
956.63 935.98 801.31 709.93 |
| (m /mim)/Mpa |
1.30/0.70 1.10/0.80 0.95/1.00 0.86/1.30 |
1.85/0.70 1.62/0.80 1.40/1.00 1.31/1.30 |
2.40/0.70 2.24/0.80 2.00/1.00 1.70/1.30 |
3.20/0.70 3.10/0.80 2.70/1.00 2.20/1.30 |
3.80/0.70 3.60/0.80 3.20/1.00 2.80/1.30 |
5.20/0.70 5.06/0.80 3.90/1.00 3.50/1.30 |
6.80/0.70 6.46/0.80 5.40/1.00 3.90/1.30 |
8.00/0.70 7.70/0.80 7.00/1.00 6.10/1.30 |
10.50/0.70 10.00/0.80 8.70/1.00 7.50/1.30 |
13.60/0.70 13.30/0.80 11.60/1.00 9.80/1.30 |
16.30/0.70 15.30/0.80 14.60/1.00 12.30/1.30 |
20.30/0.70 619.30/0.80 17.00/1.00 14.60/1.30 |
25.00/0.70 23.00/0.80 20.00/1.00 18.00/1.30 |
27.08/0.70 26.50/0.80 22.70/1.00 20.10/1.30 |
|
| Noise | (db) | 62±2 | 62±2 | 62±2 | 62±2 | 68±2 | 72±2 | 72±2 | 72±2 | 75±2 | 75±2 | 75±2 | 78±2 | 78±2 | 78±2 |
| Machine Dimension |
(L*W*H)mm/ Weight(KG) |
960*680 *960/280 |
980*710 *1030/330 |
980*710 *1030/380 |
1310*780 *1220/500 |
1310*790 *1250/530 |
1480*890 *1470/745 |
1490*890 *1490/780 |
1500*950 *1475/870 |
1625*980 *1625/1040 |
1850*1080 *1635/1360 |
2200*1380 *1750/2150 |
2210*1310 *1750/2360 |
2210*1310 *1900/3150 |
2700*1460 *2010/3480 |
| Air outlet | Inch/mm | G1/2" | G3/4" | G3/4" | G1" | G1" | G1 1/2" | G1 1/2" | G1 1/2" | G1 1/2" | G2" | G2" | G2 1/2" | G1/2" | G3 |
