Single Stage Units (belt Drive)
MODEL | OB21 0812-2 | OB21 0812-3 | OB21 0812-3 | OB 21 GN-7.5 | OB 21 JN-10 | OB 31 JN-15 | OB 31 LN-20 |
---|---|---|---|---|---|---|---|
No. of Cylinders & Stages | Two / One | Two / One | Two / One | Two / One | Two / One | Two / One | Two / One |
Piston Displacement Capacity | 266 ltr/min 9.40 cfm | 332 ltr/min 11.70 dfm | 793 ltr/min 28 cfm | 841 ltr/min 30 cfm | 1038 ltr/min 36.60 dfm | 2190 ltr/min 74.40 cfm | 116 ltr/min 81.20 cfm |
Maximum Working | 8.50 bar 123 psi | 8.50 bar 123 psi | 6.00 bar 87 psi | 87.00 bar 102 psi | 6.00 bar 87 psi | 6.00 bar 87 psi | 6.00 bar 87 psi |
Air Receiver Capacity - liters (Including Accessories)* | 150 | 225 | 225 | 225 | 300 | 500 | 300-500 |
Capacity - hp / kw | 2 hp 1.50 kw | 3 hp 1.50 kw | 5 hp 3.75 kw | 7.50 hp 5.60 kw | 10 hp 7.50 kw | 15 hp 11.20 kw | 20 hp 15 kw |
Double Stage Units (belt Drive)
MODEL | OB22 HK-3 | OB22 HK-5 | OB22 LN-10 | OB22 LN-12.5 | OB32 LN-15 | OB32 LN-20 |
---|---|---|---|---|---|---|
No. of Cylinders & Stages | Two / One | Two / One | Two / One | Two / One | Two / One | Three / Two |
Piston Displacement Capacity | 302 ltr/min 10.70 cfm | 440 ltr/min 15.50 cfm | 1013 ltr/min 35.90 cfm | 1155 ltr/min 40.80 cfm | 1877 ltr/min 66.30 cfm | 2269 ltr/min 80.10 cfm |
Maximum Working Pressure | 10 bar 145 psi | 10 bar 145 psi | 10 bar 145 psi | 10 bar 145 psi | 10 bar 145 psi | 10 bar 145 psi |
Air Receiver Capacity - litres (Including Accessories)* | 150 | 225 | 300 | 300 | 500 | 500 |
Capacity - hp / kw | 3 hp 1.50 kw | 5 hp 3.75 kw | 10 hp 7.50 kw | 12.50 hp 9.30 kw | 15 hp 11.20 kw | 20 hp 15 kw |
Model | Motor H.P. | Piston Displacement C.F.M. | Piston Displacement L.P.M. | Maximum Pressure Kg/cm²g | Maximum Pressure Psig | Tank Capacity Liters |
---|---|---|---|---|---|---|
Two Stage Compressors | ||||||
VC-3340 | 3.00 | 11.25 | 318 | 12.50 | 175 | 150 |
VC-3475 | 7.50 | 22.0 | 622 | 12.50 | 157 | 225 |
VC-284 | 2.00/3.00 | 7.59/10.80 | 215/305 | 12.50 | 175 | 150 |
VC-282 | 5.00/7.50 | 17.30/20.00 | 490/570 | 12.50 | 175 | 225 |
VC-303 | 7.50/10.00 | 26.23/31.80 | 740/897 | 12.50 | 175 | 225/300 |
VC-4545 | 7.50/10.00 | 29.81/37.80 | 843/1070 | 12.50 | 175 | 225/300 |
VC-111T2 | 10.00/12.50 | 40.00/49.50 | 1130/1400 | 12.50 | 175 | 300/500 |
VC-65T | 15.00/20.00 | 63.50/84.80 | 1800/2310 | 12.50 | 175 | 500 |
VC-75T2 | 25.00/30.00 | 99.00/110.00 | 2800/3100 | 12.50 | 175 | 500 |
VC-111T | 15.00 | 55.00 | 1550 | 17.50 | 250 | 300 |
Single Stage Compressors | ||||||
VC-285 | 3.00 | 15.80 | 430 | 5.62 | 80 | 150 |
VC-294 | 5.00 | 26.50 | 750 | 5.62 | 80 | 225 |
VC-305 | 7.50 | 40.00 | 1130 | 5.62 | 80 | 250 |
VC-57S | 10.00 | 68.10 | 1928 | 4.21 | 60 | 300 |
VC-57S2 | 12.50 | 88.00 | 2490 | 2.81 | 40 | 300 |
VC-65S2 | 15.00 | 81.60 | 2305 | 3.52 | 50 | 450 |
VC-65S2D | 20.00 | 127.80 | 3610 | 2.81 | 40 | 500 |
Multistage High Pressure Compressors | ||||||
VC-261 | 3.00 | 7.60 | 210 | 35.15 | 500 | 150 |
VC-47T2 | 7.50/10.00 | 24.00/32.25 | 680/915 | 35.15 | 500 | 300 |
VC-47T2 | 12.50 | 36.36 | 1030 | 35.15 | 500 | 300 |
VC-57T2 | 15.00/20.00 | 41.80/49.50 | 1180/1400 | 35.15/56.25 | 500/800 | 500 |
VC-65TH | 15.00/20.00 | 55.00/73.00 | 1557/1980 | 30.00 | 427 | 500 |

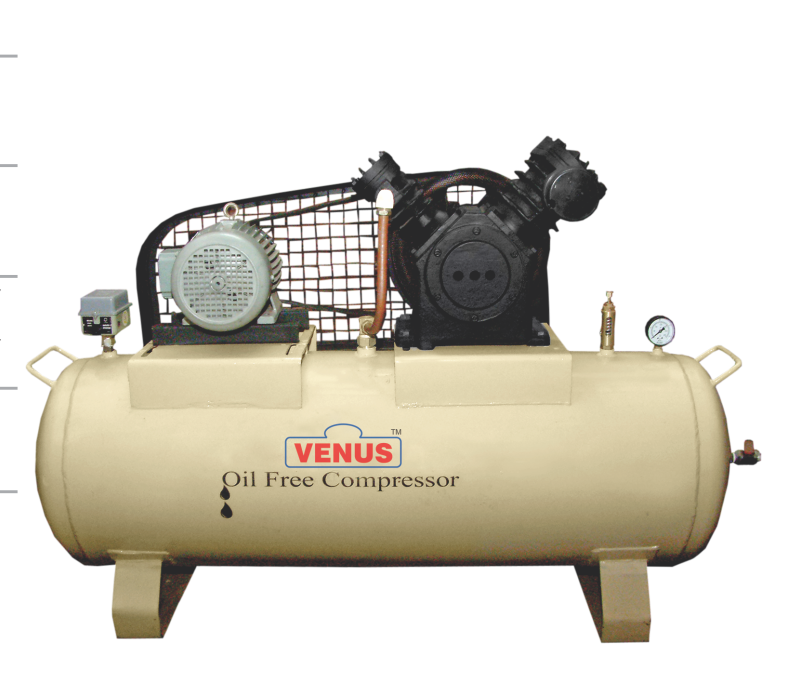

100% Oil Free Reciprocating Compressor
Single Stage Units (direct Drive)
MODEL | OD11BC-0.25 | OD21BC-0.5 | OD21BC-1.0 | OD21DC-1.0 |
---|---|---|---|---|
No. of Cylinders & Stages | One / One | Two / One | Two / One | Two / One |
Piston Displacement Capacity | 45 ltr/min 1.60 cfm | 90 ltr/min 3.20 cfm | 90 ltr/min 3.20 cfm | 130 ltr/min 4.60 cfm |
Maximum Working Pressure | 8.50 bar 123 psi | 8.50 bar 123 psi | 10 bar 145 psi | 8.50 bar 123 psi |
Air Receiver Capacity - litres (Including Accessories)* | 25~45 | 25~45 | 45~70 | 45~70 |
Electric Power | 1 ph. 215 | V 1 ph. 215 | V 1 ph. / 215 3 ph. / 415 V | V 1 ph. / 215 V 3 ph. / 415 V |
Capacity - hp / kw | 0.25 hp 0.19 kw | 0.50 hp 0.37 kw | 1.00 hp 0.75 kw | 1.00 hp 0.75 kw |
Lubricant Reciprocating Compressor add
Single/Two Stage Vacuum Pumps
MODEL | Motor No. ph | No. of Cylinders | Piston Displacement cfm | Vacuum (Hg) Pressure inches |
---|---|---|---|---|
285V | 1.50 | 2 | 21.60 | 29.00 |
285VT | 1.50 | 2 | 10.80 | 29.60 |
294V | 2.00 | 2 | 34.60 | 29.00 |
294VT | 2.00 | 2 | 17.30 | 29.65 |
305V | 5.00 | 2 | 60.00 | 29.00 |
305VT | 5.00 | 2 | 30.00 | 29.70 |
57V | 7.50 | 2 | 110.00 | 29.00 |
57VT | 7.50 | 2 | 55.00 | 29.65 |
65V | 10.00 | 3 | 149.60 | 29.20 |
65VT | 10.00 | 3 | 99.00 | 29.65 |
