DRY & CLEAN COMPRESSED AIR

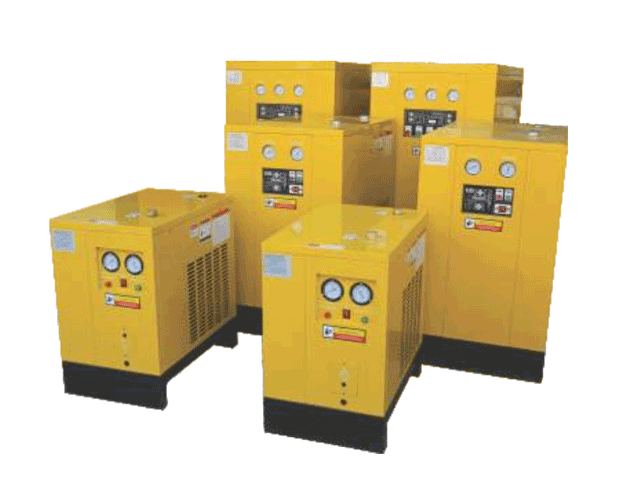

Frozen Compressed Air Dryer
Technical Specification
| BaseModel |
NominalCapacitycfm |
MaximumPressureBarg |
AirConnectionIn/Out |
RatedPower*kW AirCooled |
| DSR-7.5F |
25 |
16 |
½BSP(F) |
0.15 |
| DSR-10F |
45 |
16 |
½BSP(F) |
0.20 |
| DSR-15F |
68
|
16
|
1BSP(F)
|
0.40
|
| DSR-20F |
85
|
16
|
1BSP(F)
|
0.50
|
| DSR-25F |
100
|
16
|
1½BSP(F)
|
0.60
|
| DSR-30F |
134
|
16
|
1BSP(F)
|
1.00
|
| DSR-40F |
180
|
16
|
1½BSP(F)
|
0.90
|
| DSR-50F |
250
|
16
|
2BSP(F)
|
1.40
|
| DSR-60F |
300
|
16
|
2BSP(F)
|
1.60
|
| DSR-75F |
400
|
16
|
2BSP(F)
|
1.90
|
| DSR-100F |
500
|
16
|
3NBASME Flg
|
2.30
|
| DSR-125F |
600
|
16
|
3"NBASME Flg
|
2.80
|
| DSR-180F |
800
|
16
|
3"NBASME Flg
|
3.80
|
| DSR-220F |
1000
|
16
|
4"NB ASME Flg
|
5.00
|
| DSR-250F |
1250
|
16
|
4"NB ASME Flg
|
5.70
|
| DSR-300F |
1500
|
12.5
|
5"NB ASME Flg
|
6.80
|
| DSR-400F |
2000
|
12.5
|
6"NB ASME Flg
|
8.70
|
| DSR-500F |
2500
|
12.5
|
6"NB ASME Flg
|
11.00
|
High Pressure Air Dryer
| Model |
Capacity cfm |
Maximum Working Pressure Kg./sg.cm |
| VDH - 002 |
25 |
35 |
| VDH - 004 |
45 |
35 |
| VDH - 006 |
68
|
35
|
| VDH - 008 |
80
|
35
|
| VDH - 010 |
100
|
35
|
| VDH - 012 |
125
|
35
|
| VDH - 015 |
150
|
35
|
| VDH - 020 |
200
|
35
|
| VDH - 025 |
250
|
35
|
Features:-
Environment Friendly
More Reliability
Power Saving
Consistent Dew Point
Low Pressure Drop
Compact Design
Ease of Installation
Reduced Maintenance
